Description
digital gear sl MKS Servos X6 HBL575SL Brushless Titanium Gear Low Profile Digital SerOverview The MKS X6 HBL575SL Brushless Titanium Gear Low Profile Digital Servo (High Voltage) is a precision Servos Motor designed for high performance 1 10 surface applications where compact size, fast response, and high torque are required. With a Japanese made brushless motor, CNC machined metal case, and metal alloy gear train, it delivers strong holding torque, precise control, and reliable operation across a wide high voltage range. Key Features
Overview

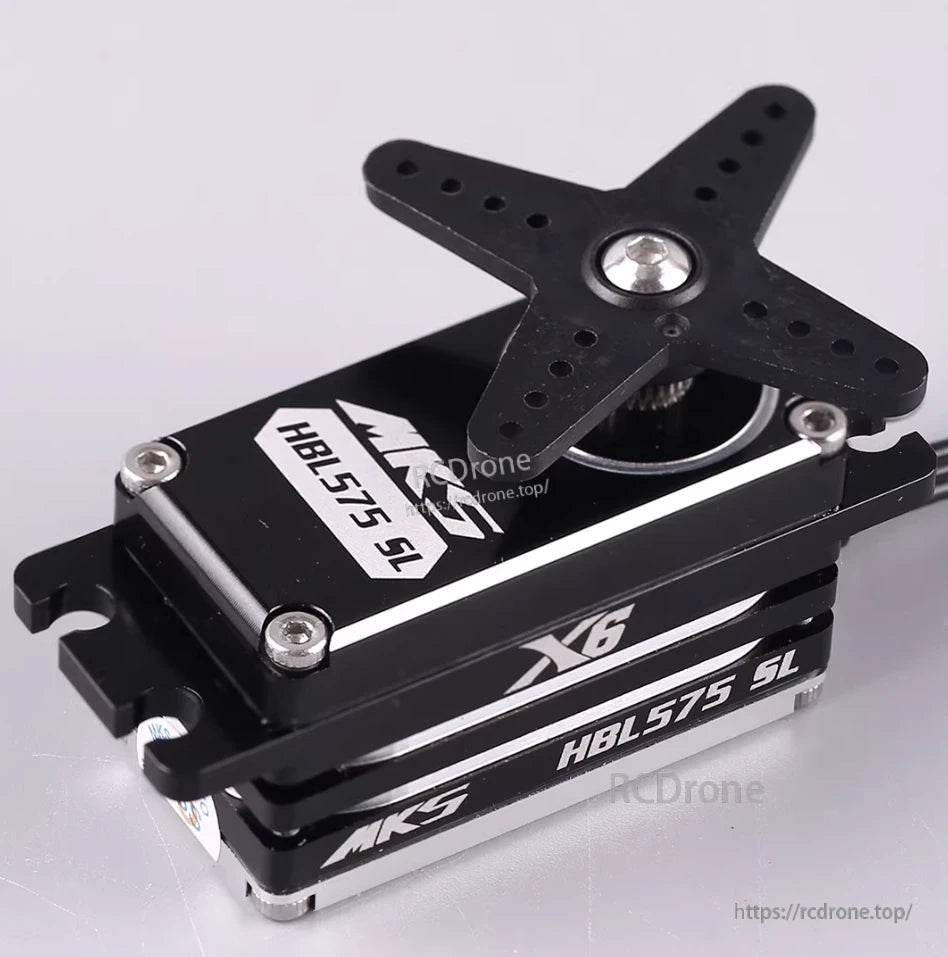

The MKS X6 HBL575SL Brushless Titanium Gear Low Profile Digital Servo (High Voltage) is a precision Servos Motor designed for high-performance 1/10 surface applications where compact size, fast response, and high torque are required. With a Japanese-made brushless motor, CNC machined metal case, and metal alloy gear train, it delivers strong holding torque, precise control, and reliable operation across a wide high-voltage range.
Key Features
- High voltage brushless digital low profile servo for demanding RC surface use.
- Ideal for 1/10 scale surface applications, especially where chassis space is limited.
- Titanium/metal alloy gear train and full metal case for strength and durability.
- CNC machined metal case design for improved heat dissipation and cooling.
- HD 4096 resolution with 0.0008 ms dead band for very precise positioning.
- Japanese-made brushless motor provides superior holding torque and smooth response.
- High speed, efficient operation, and low power consumption over the supported voltage range.
- Low-profile dimensions (40.5 x 20.5 x 23.1 mm) and 53.51 g weight suitable for space-constrained installations.
Specifications
| Servo Specification | |
| Stall torque (kg-cm) | 10 (4.8V) / 13.3 (6.0V) / 16.8 (7.4V) |
| Stall torque (oz-in) | 138.9 (4.8V) / 184.7 (6.0V) / 233.3 (7.4V) |
| No-load speed | 0.10 s (4.8V) / 0.08 s (6.0V) / 0.07 s (7.4V) |
| Stall current | 1.9 A (4.8V) / 2.4 A (6.0V) / 2.9 A (7.4V) |
| Working voltage | 4.8V ~ 8.4V DC Volts |
| Working frequency | 1520 us / 333 Hz |
| Dead band | 0.0008 ms (default) |
| Bearing | 2 x ball bearing |
| Gear | Metal alloy gear |
| Motor | Japanese-made brushless motor |
| Resolution | HD 4096 resolution |
| Case | CNC machined metal case |
| Weight | 53.51 g (1.89 oz) |
| Dimensions | 40.5 x 20.5 x 23.1 mm |
| Profile | Low profile |
Applications
This low profile digital brushless titanium gear servo is suited to 1/10 scale surface RC vehicles and other compact installations that require high torque, fast transit times, and precise centering, such as touring cars, buggies, and on-road models with limited mounting height.
